Synergy Controller Demo Offer

Tidal Engineering's Synergy Quattro Controller Retrofit Demo

Our Synergy Controller is such a vast improvement over the VersaTenn III controller and the retrofit process is so easy, you have to try it. We are so sure it will make your life easier that we want you to try it Free of charge.

Step by Step Instructions

Follow step-by-step instructions to setup and configure your new controller quickly.

Synergy Controller vs. VersaTenn III

The Synergy Controller is Tidal Engineering’s Environmental Chamber retrofit package designed as a drop-in replacement for Tenney VersaTenn controllers. The Synergy Controller enhances legacy environmental test chambers with state-of-the-art usability, connectivity and operating efficiency. The Synergy Controller was designed specifically to field retrofit legacy VersaTenn III equipped environmental test chambers in less than one hour. It can also be retrofit into chambers from Envirotronics, Thermotron, Blue-M and Cincinnati Sub-Zero.

The Synergy Controller offers advantages in:

User Interface, Communications, Maintenance, Upgradeability, Cascade Control, Data acquisition, Logging, Removable storage, Ethernet and GPIB connectivity, LabVIEW and Internet Compatibility.

Some of the features of the Synergy Controller are:

• Color touch screen.
• Ethernet, RS-232 communications are standard. GPIB communications are optional.
• Built in Data logger and Data Acquisition system for up to 64 T-type thermocouples.
• Built in Web Server for remote control.
• Compatible with Companion PC software for logging and program creation.
• Built-in USB port compatible with USB Disk drives for data logging and program transfer.
• LabVIEW driver support for TCP/IP, GPIB and RS-232.

Take a look at Application Note 5 for a side by side comparison of these controllers.

Synergy Controller Application Note 5: Compare the Synergy Controller with the VersaTenn III (pdf).

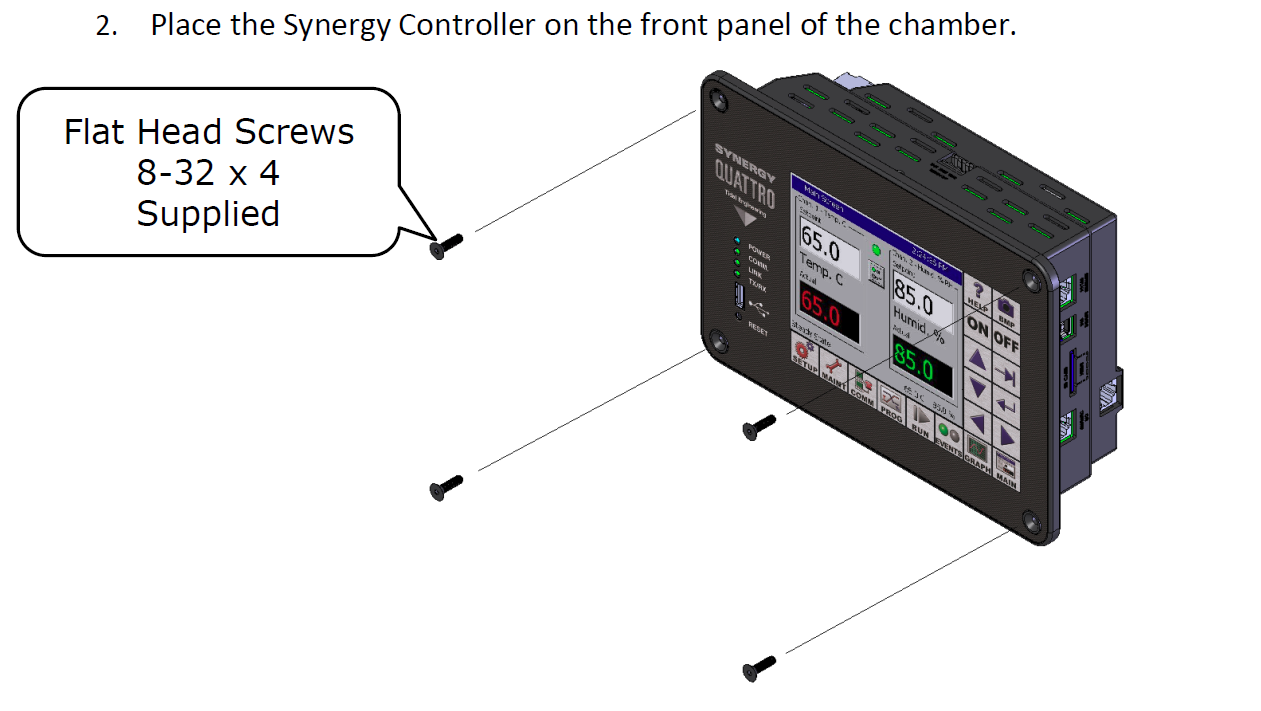

Replacing a VersaTenn III Controller is easily accomplished with just a screwdriver in about an hour.

Tidal Engineering has created detailed instructions for the removal of the old VersaTenn controller and the installation of the new Synergy Controller. The replacement instructions are provided in the following application note:

Synergy Controller Application Note 1: Replacing a VersaTenn III Controller (pdf).

How Do I Order My Risk-Free Demo?

We’ll ship your Synergy Controller unit for a 30-day demonstration free of charge! Just contact our authorized distributor, ADI American Distributors Inc. Be sure to include the quantity of demo units, any options you’d like included, and provide three trade credit references, and a bank reference.  Download our promotional flyer for the Demo Offer specifics.

More Information

For more information including a Synergy Controller data sheet, Technical Manual, Application Notes and Features visit the Synergy Controller Home Page.
